Use:

盛世国际This machine is suitable for BOPP, PET, CPE, CPP, nylon, aluminum foil, paper and other roll-like film material two or more layers.

Main Description:

■ machine using PLC logic control and protection, touch screen centralized control;

盛世国际■ machine four AC variable frequency motor tension control, four closed-loop tension control and display;

■ retractable volume independent double-arm double-position rotary frame, inflatable shaft support roll, non-stop refueling, unwinding material for manual cutting, winding material for automatic cutting;

盛世国际■ Three-stage open-type efficient and efficient drying oven and into the exhaust design, effective control of residual solvents;

盛世国际■ water cooling before rolling;

■ pneumatic scraper, horizontal movement;

盛世国际■ glue uniform device (uniform rubber roller);

■ Emptying EPC gas-liquid correction;

盛世国际■ circulating oil or water heating composite steel roller;

■ Three-roll compound press roller device;

A second material preheating device;

■ dry heat source: electricity, steam, hot oil, natural gas;

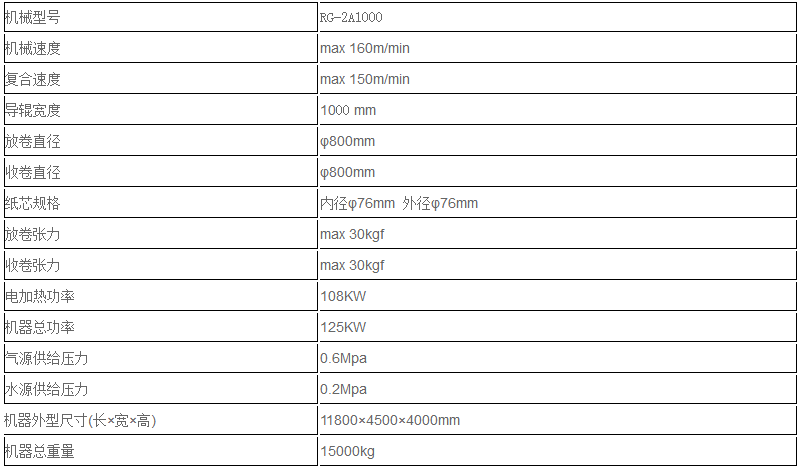

盛世国际The main technical parameters:

The appearance, technical parameters, performance and features of the machine are subject to change without notice. Without the express written permission of Ruiguang company, may be reproduced or the dissemination of relevant information
